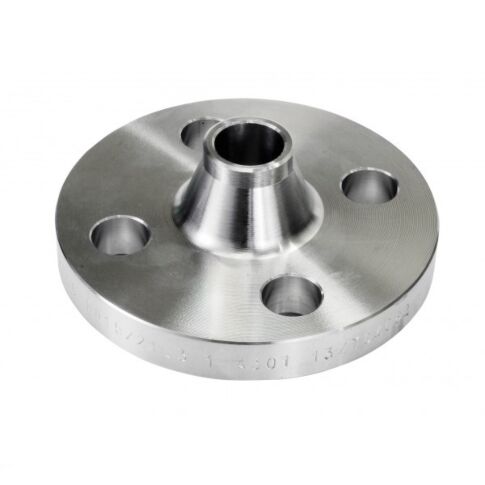

V-Flansche DIN2633 Form C PN16 DN 15/21,3 x 2,0
24400004
|
91 St.
Auf Lager
Nicht auf Lager
|
|
Baumasse
| Gewicht in kg |
0.6480 |
|---|
| Abmessung |
DN 15/21.3 |
|---|
| Material |
1,4541 |
|---|
| b |
14,0 mm |
|---|
| D |
95,0 mm |
|---|
| d1 |
21,3 mm |
|---|
| d2 |
14,0 mm |
|---|
| d3 |
32,0 mm |
|---|
| d4 |
45,0 mm |
|---|
| f |
2,0 mm |
|---|
| H1 |
35,0 mm |
|---|
| H2 |
6,0 mm |
|---|
| k |
65,0 mm |
|---|
| r |
4,0 mm |
|---|
| s |
2,0 mm |
|---|
| Schrauben Anzahl |
4 |
|---|
| Schraubengewinde |
M12 |
|---|
| PN |
16 |
|---|
|
|
|
V-Flansche DIN2633 Form C PN16 DN 20/26,9 x 2,3
24400006
|
61 St.
Auf Lager
Nicht auf Lager
|
|
Baumasse
| Gewicht in kg |
0.9520 |
|---|
| Abmessung |
DN 20/26.9 |
|---|
| Material |
1,4541 |
|---|
| b |
16,0 mm |
|---|
| D |
105,0 mm |
|---|
| d1 |
26,9 mm |
|---|
| d2 |
14,0 mm |
|---|
| d3 |
40,0 mm |
|---|
| d4 |
58,0 mm |
|---|
| f |
2,0 mm |
|---|
| H1 |
38,0 mm |
|---|
| H2 |
6,0 mm |
|---|
| k |
75,0 mm |
|---|
| r |
4,0 mm |
|---|
| s |
2,3 mm |
|---|
| Schrauben Anzahl |
4 |
|---|
| Schraubengewinde |
M12 |
|---|
| PN |
16 |
|---|
|
|
|
V-Flansche DIN2633 Form C PN16 DN 25/33,7 x 2,6
24400008
|
146 St.
Auf Lager
Nicht auf Lager
|
|
Baumasse
| Gewicht in kg |
1.1400 |
|---|
| Abmessung |
DN 25/33.7 |
|---|
| Material |
1,4541 |
|---|
| b |
16,0 mm |
|---|
| D |
115,0 mm |
|---|
| d1 |
33,7 mm |
|---|
| d2 |
14,0 mm |
|---|
| d3 |
45,0 mm |
|---|
| d4 |
68,0 mm |
|---|
| f |
2,0 mm |
|---|
| H1 |
38,0 mm |
|---|
| H2 |
6,0 mm |
|---|
| k |
85,0 mm |
|---|
| r |
4,0 mm |
|---|
| s |
2,6 mm |
|---|
| Schrauben Anzahl |
4 |
|---|
| Schraubengewinde |
M12 |
|---|
| PN |
16 |
|---|
|
|
|
V-Flansche DIN2633 Form C PN16 DN 32/42,4 x 2,6
24400010
|
61 St.
Auf Lager
Nicht auf Lager
|
|
Baumasse
| Gewicht in kg |
1.6900 |
|---|
| Abmessung |
DN 32/42.4 |
|---|
| Material |
1,4541 |
|---|
| b |
16,0 mm |
|---|
| D |
140,0 mm |
|---|
| d1 |
42,4 mm |
|---|
| d2 |
18,0 mm |
|---|
| d3 |
56,0 mm |
|---|
| d4 |
78,0 mm |
|---|
| f |
2,0 mm |
|---|
| H1 |
40,0 mm |
|---|
| H2 |
6,0 mm |
|---|
| k |
100,0 mm |
|---|
| r |
6,0 mm |
|---|
| s |
2,6 mm |
|---|
| Schrauben Anzahl |
4 |
|---|
| Schraubengewinde |
M16 |
|---|
| PN |
16 |
|---|
|
|
|
V-Flansche DIN2633 Form C PN16 DN 40/48,3 x 2,6
24400012
|
111 St.
Auf Lager
Nicht auf Lager
|
|
Baumasse
| Gewicht in kg |
1.8600 |
|---|
| Abmessung |
DN 40/48.3 |
|---|
| Material |
1,4541 |
|---|
| b |
16,0 mm |
|---|
| D |
150,0 mm |
|---|
| d1 |
48,3 mm |
|---|
| d2 |
18,0 mm |
|---|
| d3 |
64,0 mm |
|---|
| d4 |
88,0 mm |
|---|
| f |
3,0 mm |
|---|
| H1 |
42,0 mm |
|---|
| H2 |
7,0 mm |
|---|
| k |
110,0 mm |
|---|
| r |
6,0 mm |
|---|
| s |
2,6 mm |
|---|
| Schrauben Anzahl |
4 |
|---|
| Schraubengewinde |
M16 |
|---|
| PN |
16 |
|---|
|
|
|
V-Flansche EN1092-1 Typ 11 Form B1 / DIN2633 Form C PN16 DN 50/60,3 x 2,9
24400014
|
245 St.
Auf Lager
Nicht auf Lager
|
|
Baumasse
| Gewicht in kg |
2.5300 |
|---|
| Abmessung |
DN 50/60.3 |
|---|
| Material |
1,4541 |
|---|
| b |
18,0 mm |
|---|
| D |
165,0 mm |
|---|
| d1 |
60,3 mm |
|---|
| d2 |
18,0 mm |
|---|
| d3 |
75,0 mm |
|---|
| d4 |
102,0 mm |
|---|
| f |
3,0 mm |
|---|
| H1 |
45,0 mm |
|---|
| H2 |
8,0 mm |
|---|
| k |
125,0 mm |
|---|
| r |
6,0 mm |
|---|
| s |
2,9 mm |
|---|
| Schrauben Anzahl |
4 |
|---|
| Schraubengewinde |
M16 |
|---|
| PN |
16 |
|---|
|
|
|
V-Flansche EN1092-1 Typ 11 Form B1 / DIN2633 Form C PN16 DN 65/76,1 x 2,9
24400021
|
375 St.
Auf Lager
Nicht auf Lager
|
|
Baumasse
| Gewicht in kg |
3.0600 |
|---|
| Abmessung |
DN 65/76.1 |
|---|
| Material |
1,4541 |
|---|
| b |
18,0 mm |
|---|
| D |
185,0 mm |
|---|
| d1 |
76,1 mm |
|---|
| d2 |
18,0 mm |
|---|
| d3 |
90,0 mm |
|---|
| d4 |
122,0 mm |
|---|
| f |
3,0 mm |
|---|
| H1 |
45,0 mm |
|---|
| H2 |
10,0 mm |
|---|
| k |
145,0 mm |
|---|
| r |
6,0 mm |
|---|
| s |
2,9 mm |
|---|
| Schrauben Anzahl |
4 |
|---|
| Schraubengewinde |
M16 |
|---|
| PN |
16 |
|---|
|
|
|
V-Flansche EN1092-1 Typ 11 Form B1 / DIN2633 Form C PN16 DN 80/88,9 x 3,2
24400022
|
98 St.
Auf Lager
Nicht auf Lager
|
|
Baumasse
| Gewicht in kg |
3.7000 |
|---|
| Abmessung |
DN 80/88.9 |
|---|
| Material |
1,4541 |
|---|
| b |
20,0 mm |
|---|
| D |
200,0 mm |
|---|
| d1 |
88,9 mm |
|---|
| d2 |
18,0 mm |
|---|
| d3 |
105,0 mm |
|---|
| d4 |
138,0 mm |
|---|
| f |
3,0 mm |
|---|
| H1 |
50,0 mm |
|---|
| H2 |
10,0 mm |
|---|
| k |
160,0 mm |
|---|
| r |
8,0 mm |
|---|
| s |
3,2 mm |
|---|
| Schrauben Anzahl |
8 |
|---|
| Schraubengewinde |
M16 |
|---|
| PN |
16 |
|---|
|
Neuzugang
2024 Kalenderwoche 10: 50 Stk.
|
|
V-Flansche EN1092-1 Typ 11 Form B1 / DIN2633 Form C PN16 DN 100/114,3 x 3,6
24400024
|
80 St.
Auf Lager
Nicht auf Lager
|
|
Baumasse
| Gewicht in kg |
4.6200 |
|---|
| Abmessung |
DN 100/114.3 |
|---|
| Material |
1,4541 |
|---|
| b |
20,0 mm |
|---|
| D |
220,0 mm |
|---|
| d1 |
114,3 mm |
|---|
| d2 |
18,0 mm |
|---|
| d3 |
131,0 mm |
|---|
| d4 |
158,0 mm |
|---|
| f |
3,0 mm |
|---|
| H1 |
52,0 mm |
|---|
| H2 |
12,0 mm |
|---|
| k |
180,0 mm |
|---|
| r |
8,0 mm |
|---|
| s |
3,6 mm |
|---|
| Schrauben Anzahl |
8 |
|---|
| Schraubengewinde |
M16 |
|---|
| PN |
16 |
|---|
|
Neuzugang
2024 Kalenderwoche 10: 50 Stk.
|
|
V-Flansche EN1092-1 Typ 11 Form B1 / DIN2633 Form C PN16 DN 125/139,7 x 4,0
24400026
|
43 St.
Auf Lager
Nicht auf Lager
|
|
Baumasse
| Gewicht in kg |
6.3000 |
|---|
| Abmessung |
DN 125/139.7 |
|---|
| Material |
1,4541 |
|---|
| b |
22,0 mm |
|---|
| D |
250,0 mm |
|---|
| d1 |
139,7 mm |
|---|
| d2 |
18,0 mm |
|---|
| d3 |
156,0 mm |
|---|
| d4 |
188,0 mm |
|---|
| f |
3,0 mm |
|---|
| H1 |
55,0 mm |
|---|
| H2 |
12,0 mm |
|---|
| k |
210,0 mm |
|---|
| r |
8,0 mm |
|---|
| s |
4,0 mm |
|---|
| Schrauben Anzahl |
8 |
|---|
| Schraubengewinde |
M16 |
|---|
| PN |
16 |
|---|
|
Neuzugang
2024 Kalenderwoche 10: 50 Stk.
|
|
V-Flansche EN1092-1 Typ 11 Form B1 / DIN2633 Form C PN16 DN 150/168,3 x 4,5
24400028
|
24 St.
Auf Lager
Nicht auf Lager
|
|
Baumasse
| Gewicht in kg |
7.7500 |
|---|
| Abmessung |
DN 150/168.3 |
|---|
| Material |
1,4541 |
|---|
| b |
22,0 mm |
|---|
| D |
285,0 mm |
|---|
| d1 |
168,3 mm |
|---|
| d2 |
22,0 mm |
|---|
| d3 |
184,0 mm |
|---|
| d4 |
212,0 mm |
|---|
| f |
3,0 mm |
|---|
| H1 |
55,0 mm |
|---|
| H2 |
12,0 mm |
|---|
| k |
240,0 mm |
|---|
| r |
10,0 mm |
|---|
| s |
4,5 mm |
|---|
| Schrauben Anzahl |
8 |
|---|
| Schraubengewinde |
M20 |
|---|
| PN |
16 |
|---|
|
|
|
V-Flansche EN1092-1 Typ 11 Form B1 / DIN2633 Form C PN16 DN 200/219,1 x 5,9
24400029
|
27 St.
Auf Lager
Nicht auf Lager
|
|
Baumasse
| Gewicht in kg |
11.0000 |
|---|
| Abmessung |
DN 200/219.1 |
|---|
| Material |
1,4541 |
|---|
| b |
24,0 mm |
|---|
| D |
340,0 mm |
|---|
| d1 |
219,1 mm |
|---|
| d2 |
22,0 mm |
|---|
| d3 |
235,0 mm |
|---|
| d4 |
268,0 mm |
|---|
| f |
3,0 mm |
|---|
| H1 |
62,0 mm |
|---|
| H2 |
16,0 mm |
|---|
| k |
295,0 mm |
|---|
| r |
10,0 mm |
|---|
| s |
5,9 mm |
|---|
| Schrauben Anzahl |
12 |
|---|
| Schraubengewinde |
M20 |
|---|
| PN |
16 |
|---|
|
|
|
